Parallax Tourbillon

A limited edition of 28 pieces
in red gold

description movement specifications

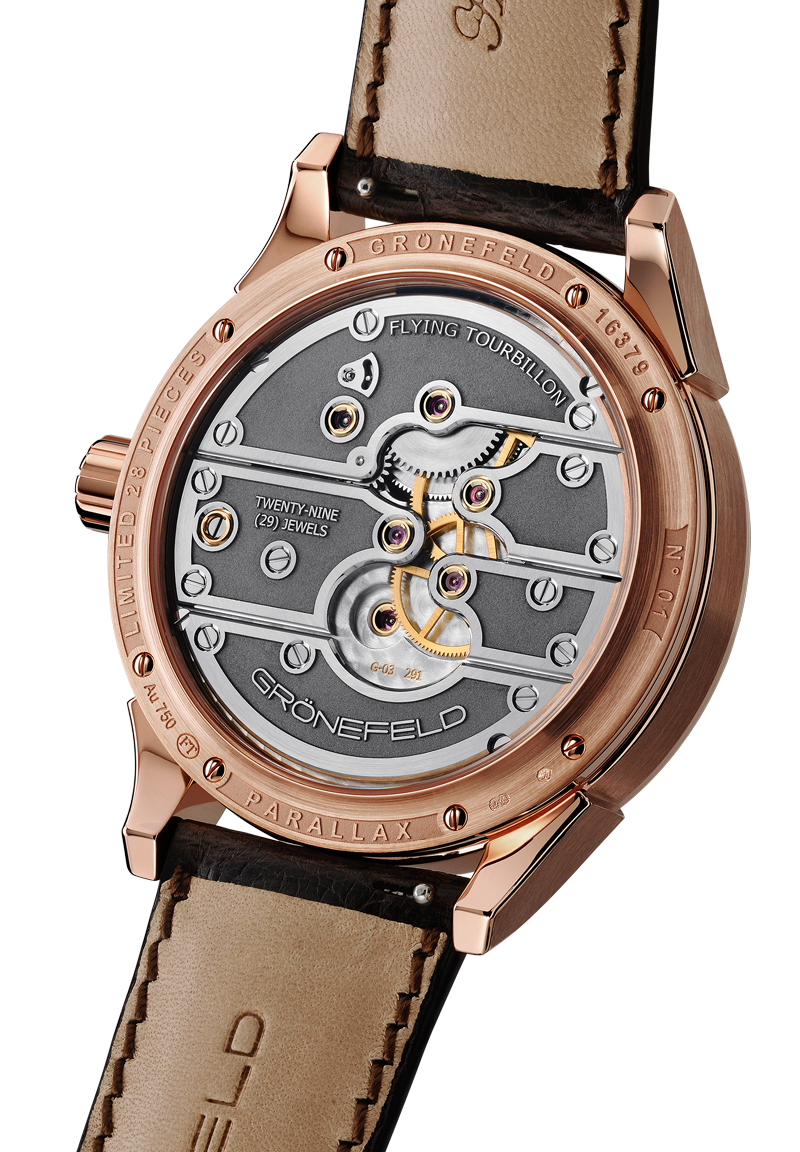

See the back

PARALLAX TOURBILLON RG

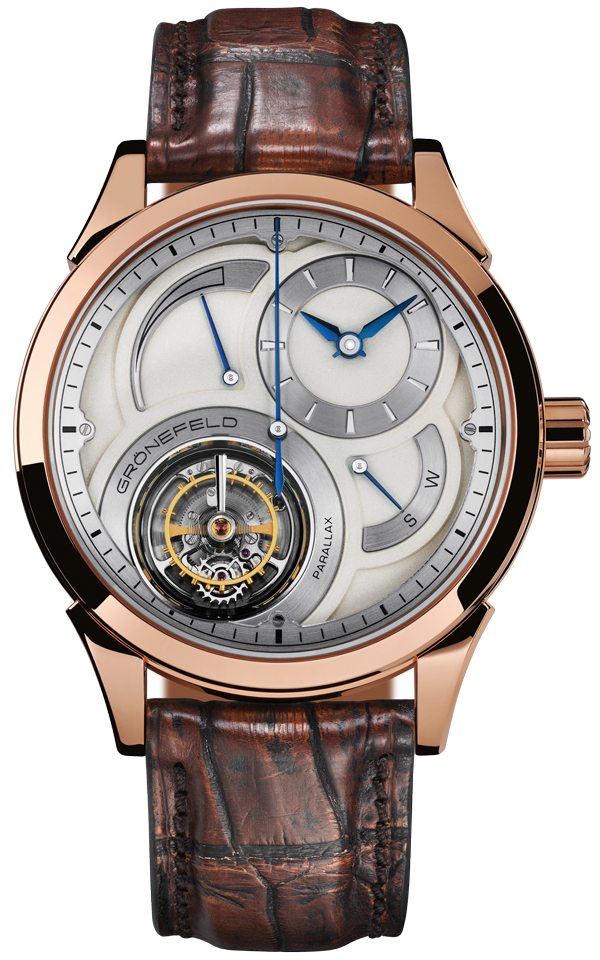

The Grönefeld Parallax tourbillon features a “flying” tourbillon with a large central seconds hand, stop seconds, power reserve indicator and winding-setting function indicator. The in-house movement, beautiful solid silver dial and highly polished case display sophistication and craftsmanship at the very highest level. The raised flying tourbillon allows full appreciation of the concentric, rhythmic“breathing” of the balance hairspring, while ensuring high precision. The name “Parallax” is derived from the precision of the readability of the central seconds hand. Parallax is defined as the apparent change in position of an object when the observer changes his own position.

The Grönefeld Parallax Tourbillon was awarded the prestigious Grand Prix d'Horlogerie de Genève for the best watch in the tourbillon categorie.

Sorry, sold out. € 137,450.00

sold out

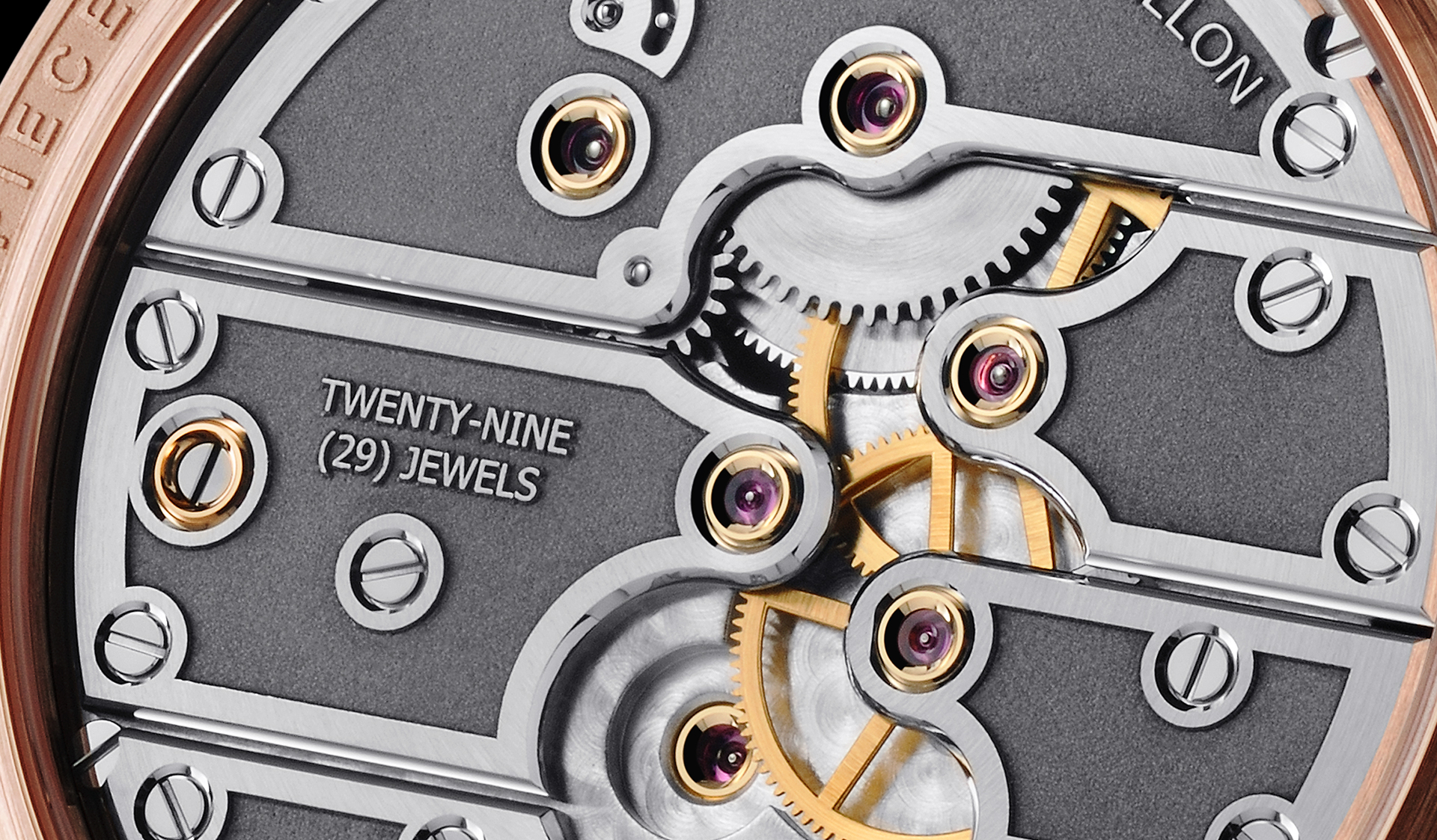

Calibre G-03

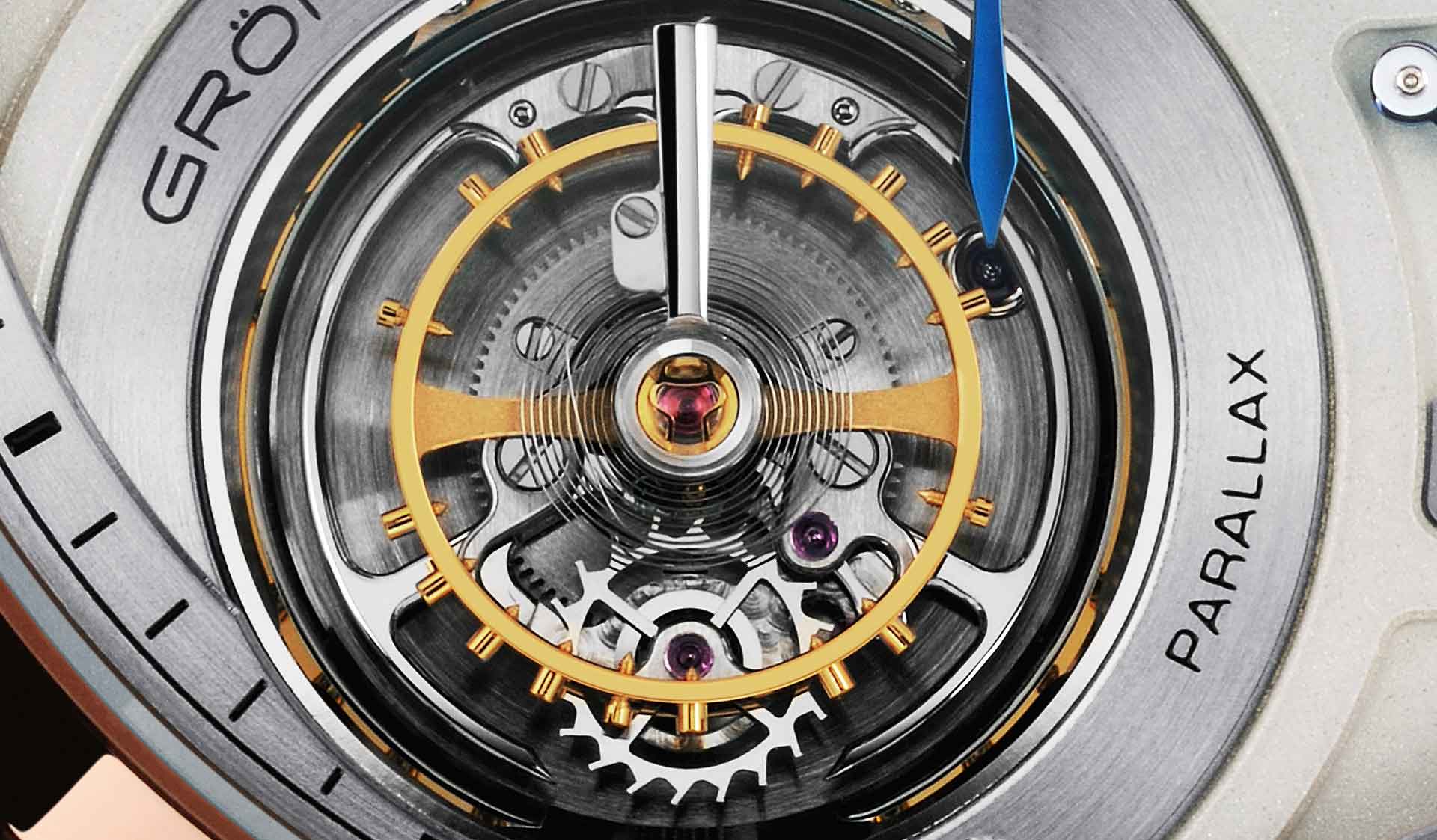

A highly-polished stainless steel sleeve around the tourbillon draws further attention to the beautiful escapement by reflecting the oscillating balance wheel and the rotations of the escape wheel and tourbillon cage. Normally a central seconds hand requires a friction spring to prevent small fluttering caused by play in the gear train. But for the Parallax Tourbillon, the Grönefeld brothers developed the movement with an added pinion and wheel so that the energy-sapping friction spring is not required. The latter feature improves power transfer to the regulator, contributing to the impressive power-72-hour power reserve.

Technical specifications

Movement

Calibre G-03	Flying tourbillon, synchronized hacking seconds, hand-wound mechanical movement, push-to-wind/push-to-set crown, power reserve indicator, function indicator setting
No. of parts	278 components
No. of jewels	29 jewels set in gold chatons
Power reserve	72 hours
Gearing	Gearing Direct gear train to avoid a friction spring for the center seconds hand by means of an additional wheel and pinion
Tourbillon	One-minute flying tourbillon cage pivoted on ceramic ball bearings Upper Cage Bridge with single arm. Fabricated in stainless steel Lower Cage fabricated in stainless steel
Balance wheel	Variable-inertia balance wheel with timing screws (diameter 10 mm)
Frequency	21’600 vibrations/hour
Balance spring	Free sprung with Phillips terminal overcoil curve, Geneva-style stud
Escapement	Lateral Swiss lever escapement
Main Plate	Spotted and snailed rhodium plated nickel silver
Bridges	Stainless steel X46 Cr13, bevels polished by hand, micro-blasted centre and spotted underneath Circular grain on the top Relief engraved in the micro blasted surface
Winding-setting	Crown with push function to chose between winding or setting
Hacking seconds	In setting position the cage and seconds-hand will stop at 60 seconds
Power reserve	Classic Breguet mechanism by means of a cone moving up and down on a treaded barrel arbor
Indications	Small hours and minutes at 1 o’clock Visible tourbillon cage at 7 o’clock Large center seconds on a raised seconds dial to minimalize parallax error Power Reserve indicator Winding - Setting indicator

Case and dial

Material	Red Gold Au750 5N

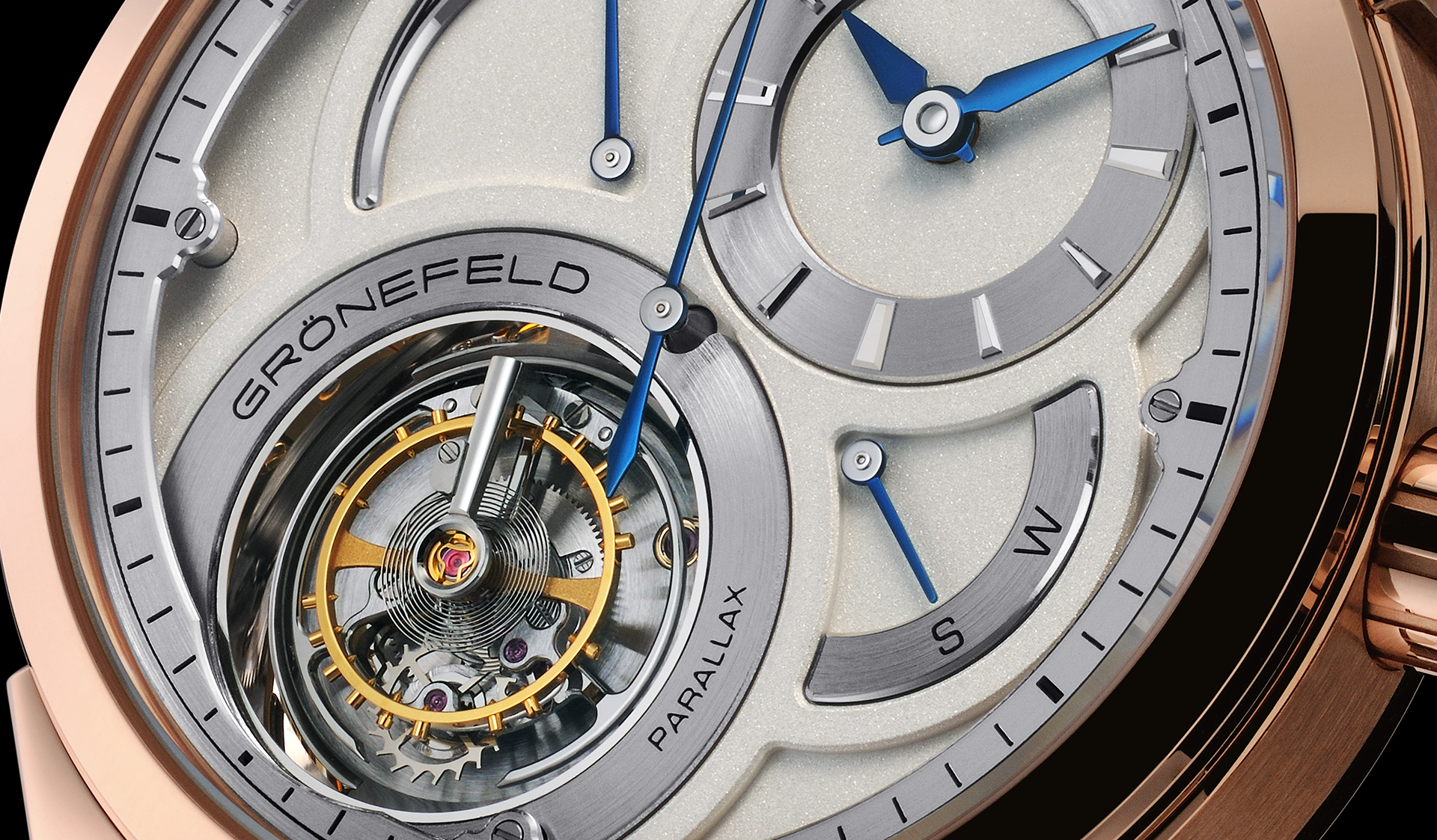

Dial	Solid Sterling Silver 925, frosted surface with diamond cut bevels Hour- Minutes dial, raised Seconds Dial Power reserve indicator Setting-winding indicator
Sapphire crystals	Domed sapphire crystal on the front with hard antireflective coating on both sides Flat sapphire crystal on the back with hard antireflective coating on both sides
Finishing	Polished bezel and centre band with hand-finished straight graining
No. of components	68 components
Case dimensions	43 mm x 12.5 mm
Water resistance	3 atmosphere – 30 meters – 100 feet
Crown	Gold with engraved with “G” logo and push to set/wind function
Hands	Extended Lancette hands, flame-blued steel and hand polished centers, large counter poised seconds hand
Strap	Hand-sewn mat brown, alligator leather. 22mm-18mm. Red Gold Au750 5N buckle, engraved with Grönefeld logo
Weight	Approximately 145 grams. Including strap and buckle.
